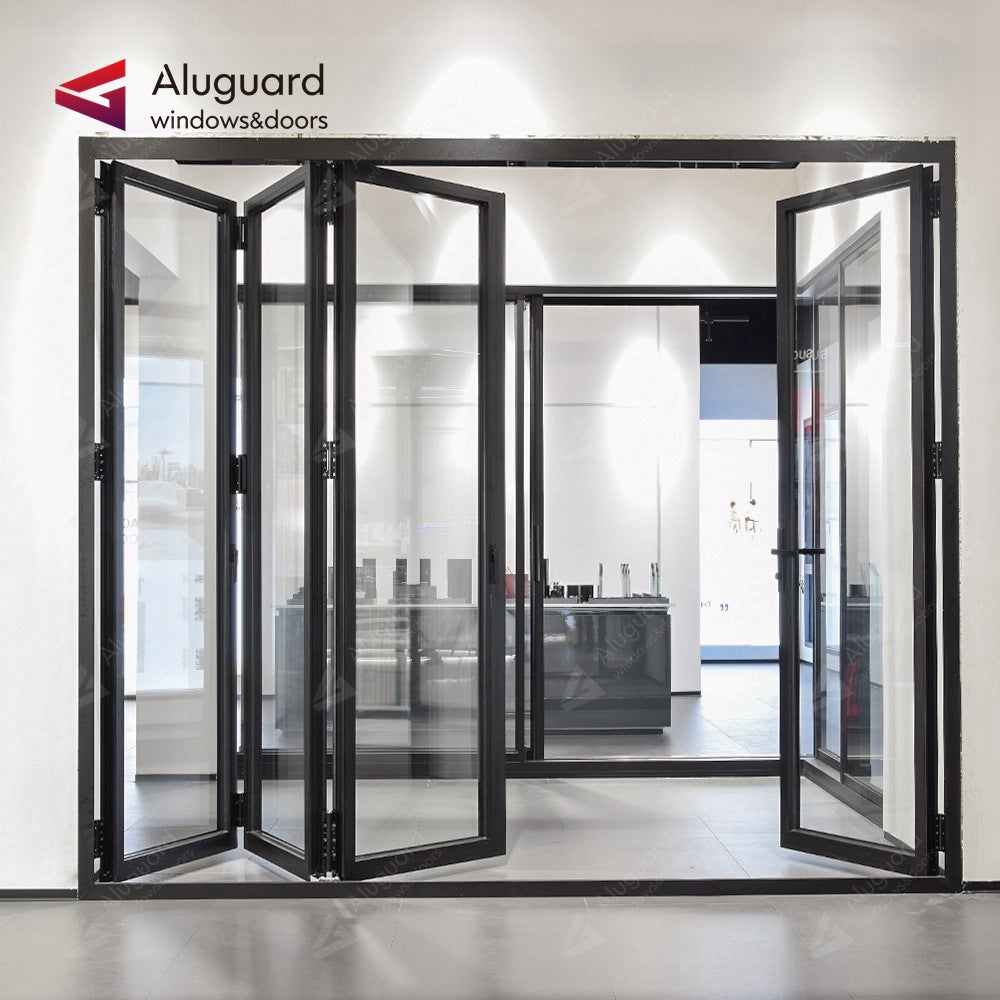

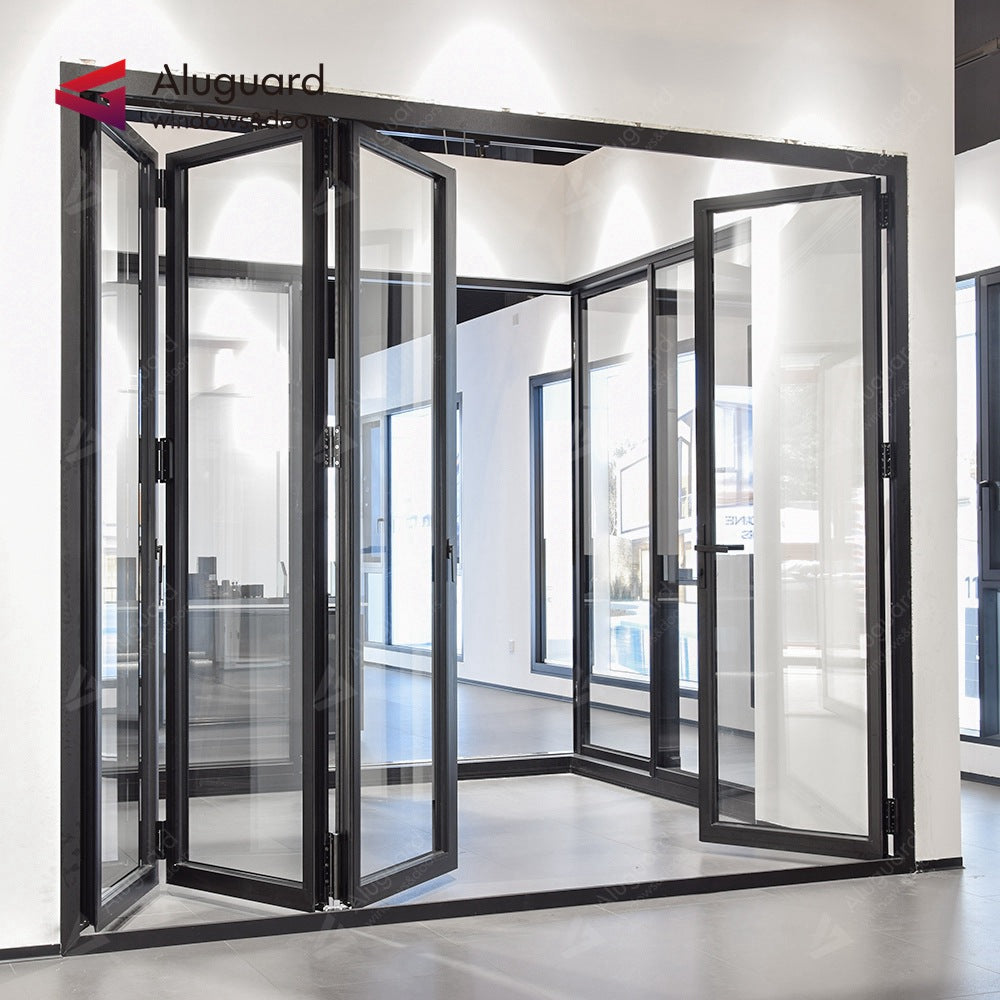

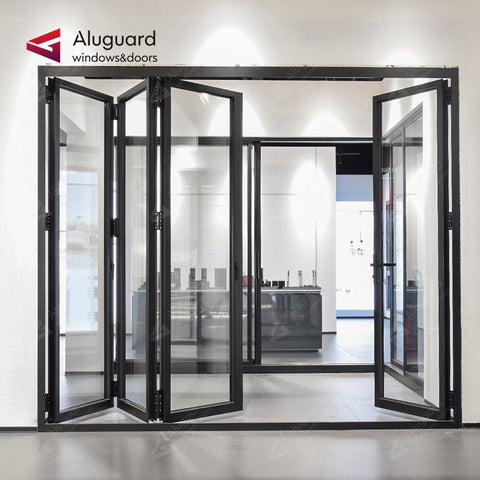

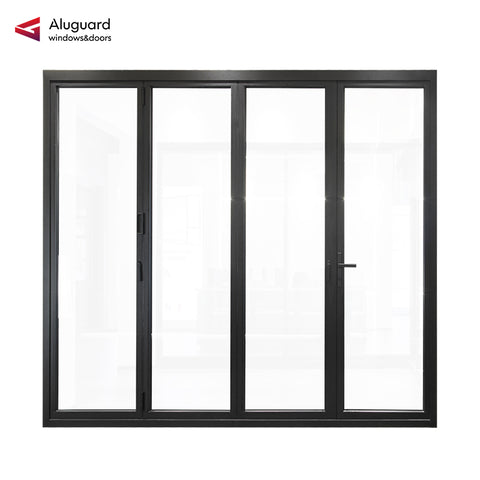

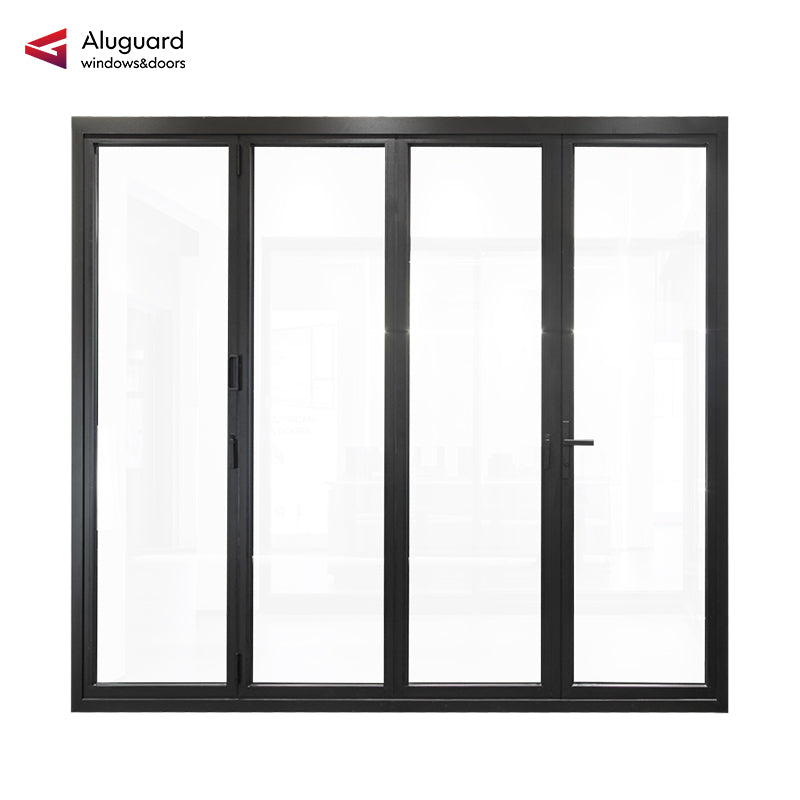

MINIMALIST SERIES - SLIM FRAME ALUMINUM FOLDING DOOR
● Minimalist design
These aluminum folding door are made of glass and aluminum to complement your home's clean.The door panel frame sightline is only 45mm.Allow more natural light in your living space.
● Large Size
The large full view glass panels beautifully fuse indoor and outdoor spaces, enhancing your home's glass expanses and patios – all while their rugged.
● Weather resistance
Powder coating aluminum construction makes them virtually maintenance-free.There are EPDM sealing strips between the gaps of the door, which has good air tightness and water tightness.
● Thermal Insulation
Available with Advanced Low-E insulating triple-pane glass with krypton or argon for increased energy efficiency.Thermal transmission coefficient:U≤2.3 w/(㎡·k)
System Details
Performance
U-Factor
0.329
SHGC
0.23
Air Leakge
≤0.5
Water Tightenss
No Leakage @ 15 psf
Design Wind Load Resistance
60 psf
Overload Wind Load Resistance
63 psf
Specifications
Basic Frame Depth
75mm
Max Swing Panel Height
120"
Max Swing Panel Width
33“
Min Swing Panel Height
80"
Min Swing Panel Width
19"
Suggest Fixed Panel Area （Single ）
≤6 m²
Why You'll Love It

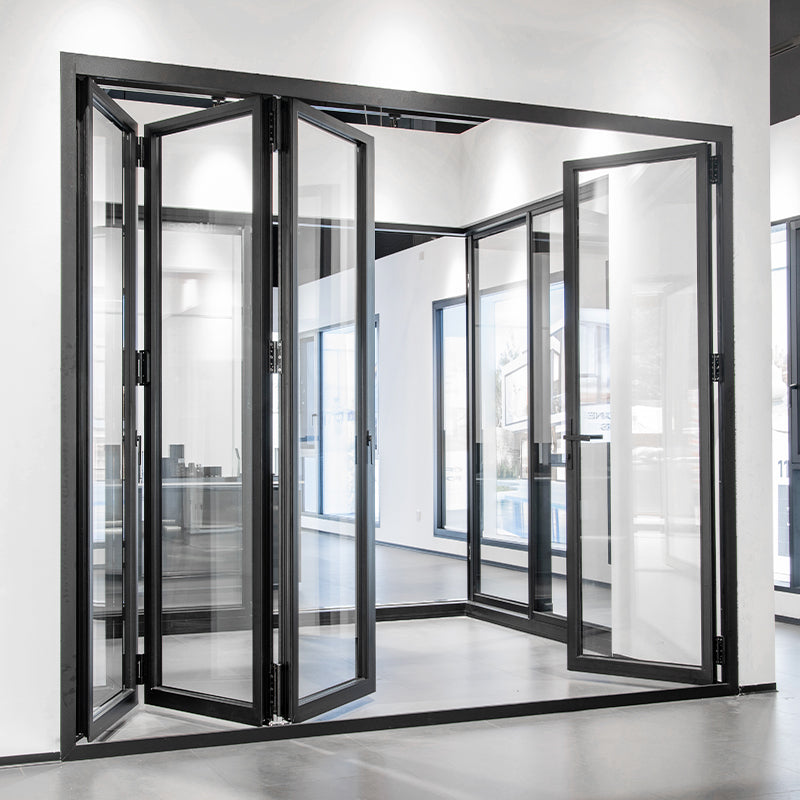

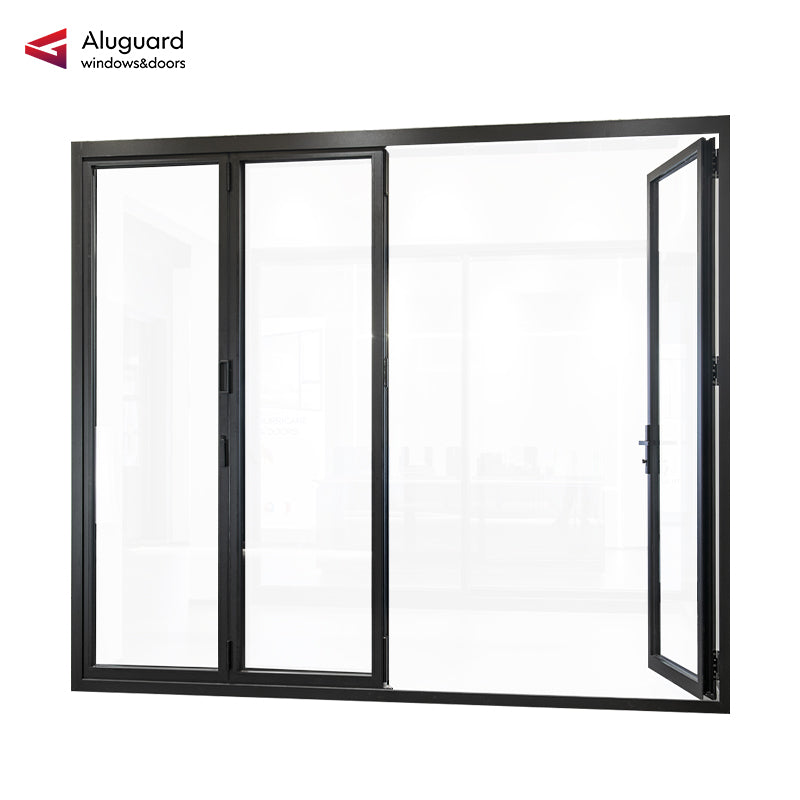

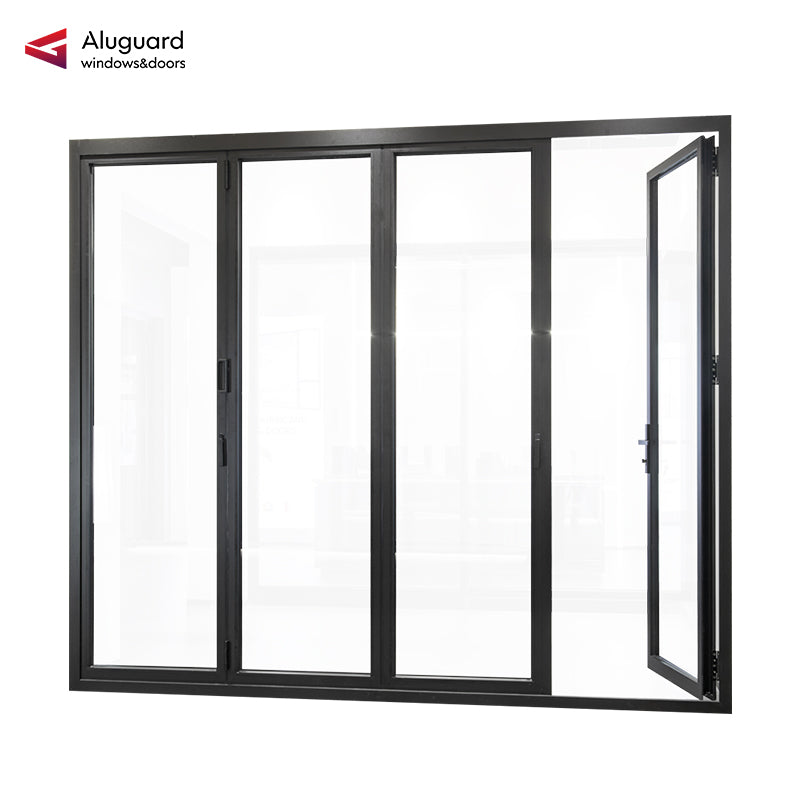

Seamless Folding System
Multi-panel folding design opens up your space and brings a stunning panoramic view

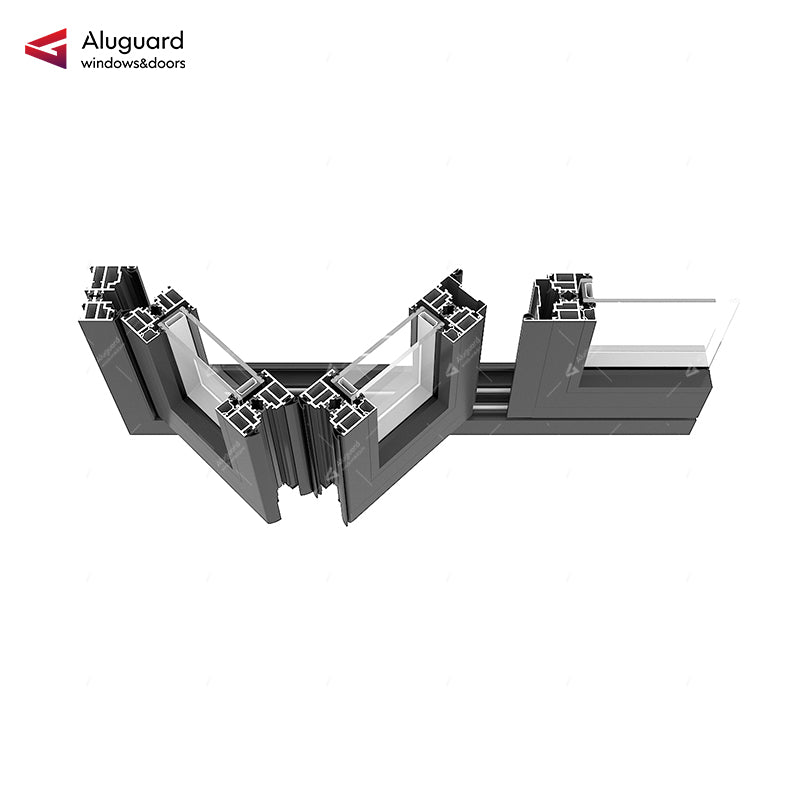

Minimalist Slim Profile
Elegant aluminum frames deliver a modern architectural appearance with maximum glass area

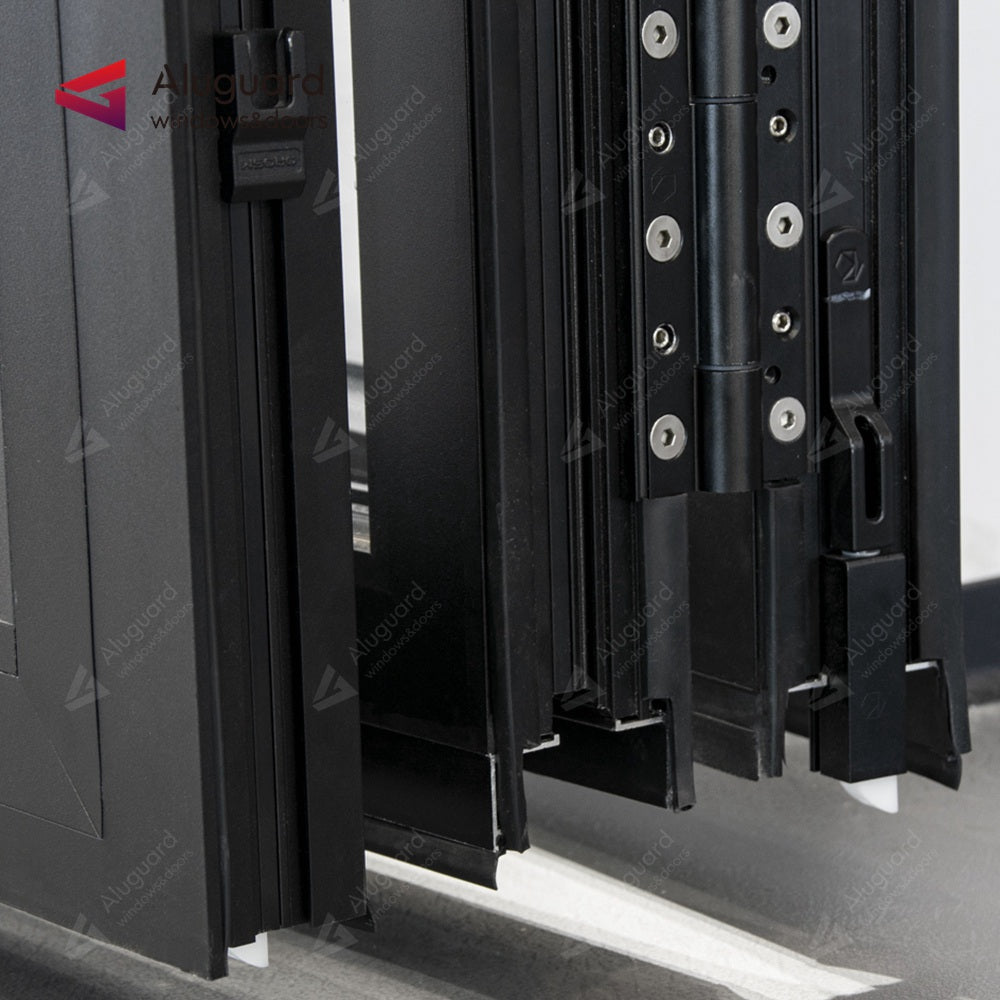

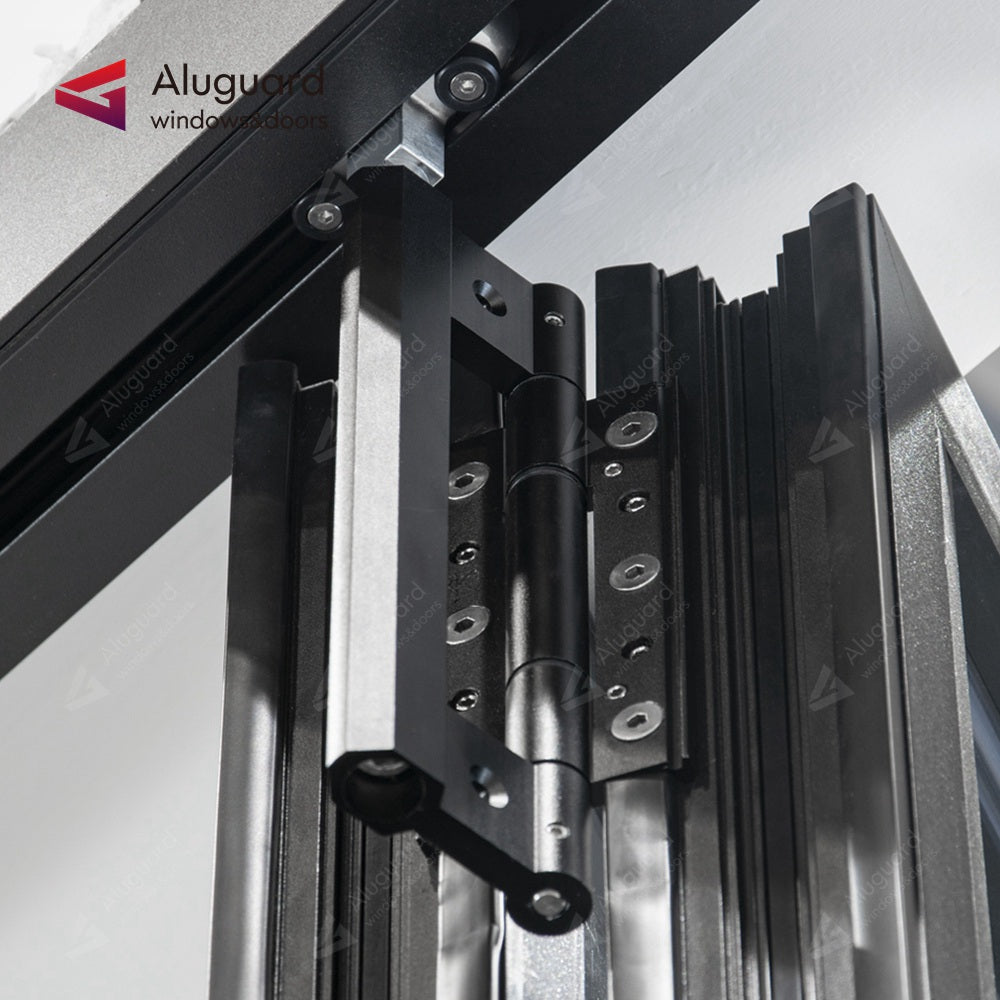

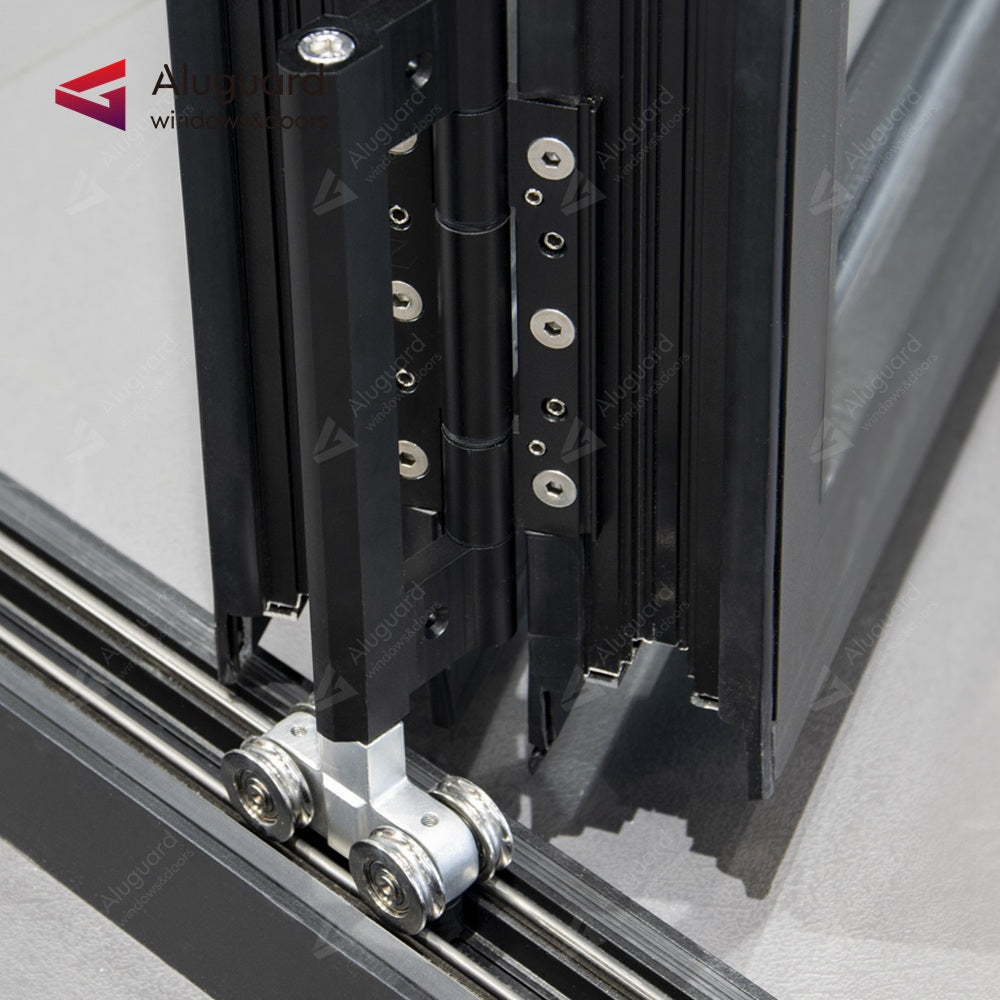

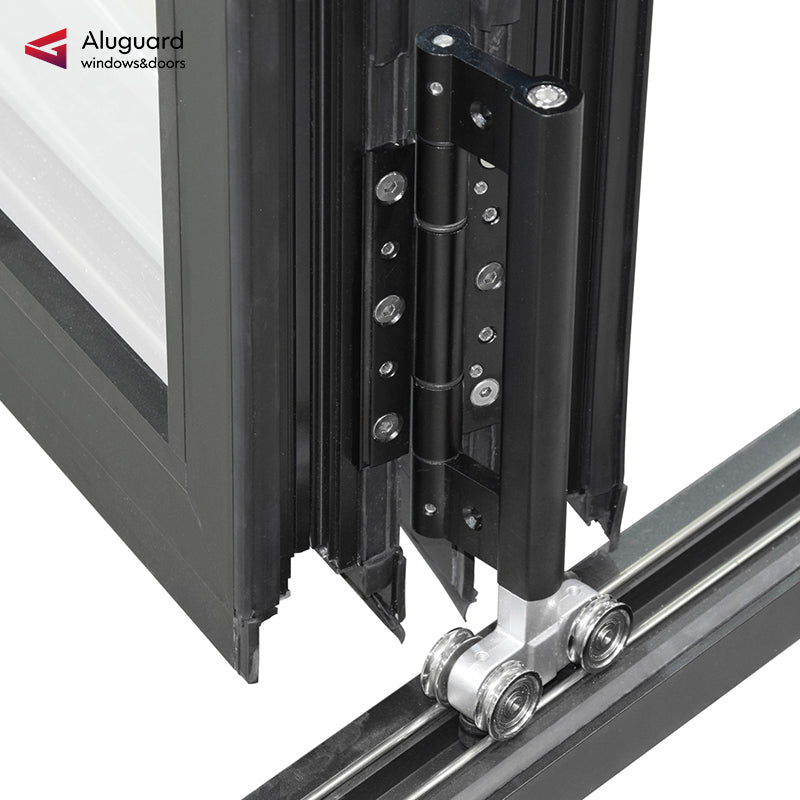

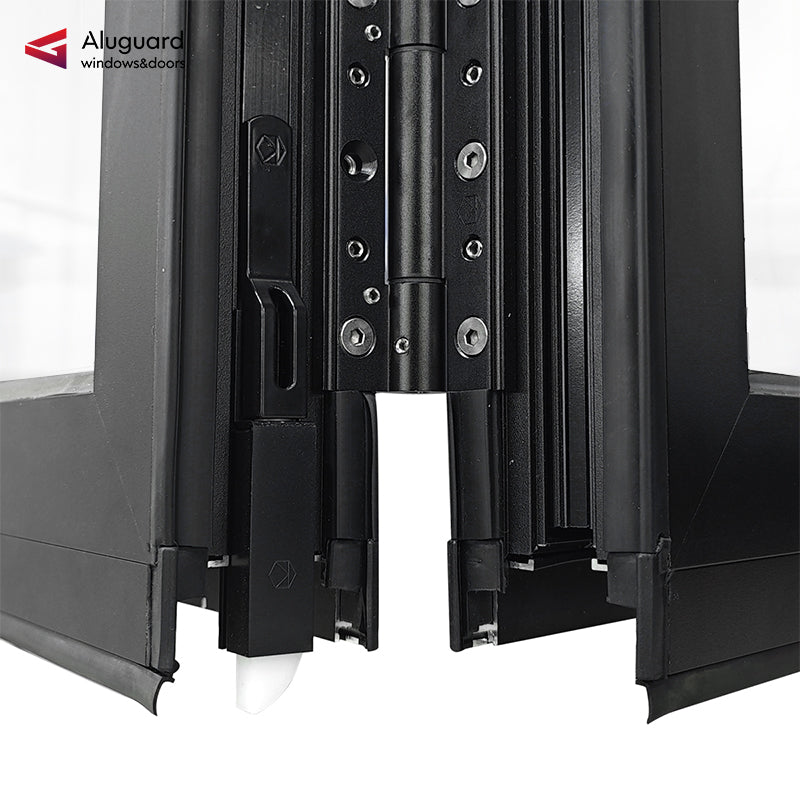

Smooth & Stable Operation
Premium hardware components provide effortless movement and reliable daily performance
Customizable Glass Solutions
Various configurations, sizes, and glass options meet different design requirements
Design Options

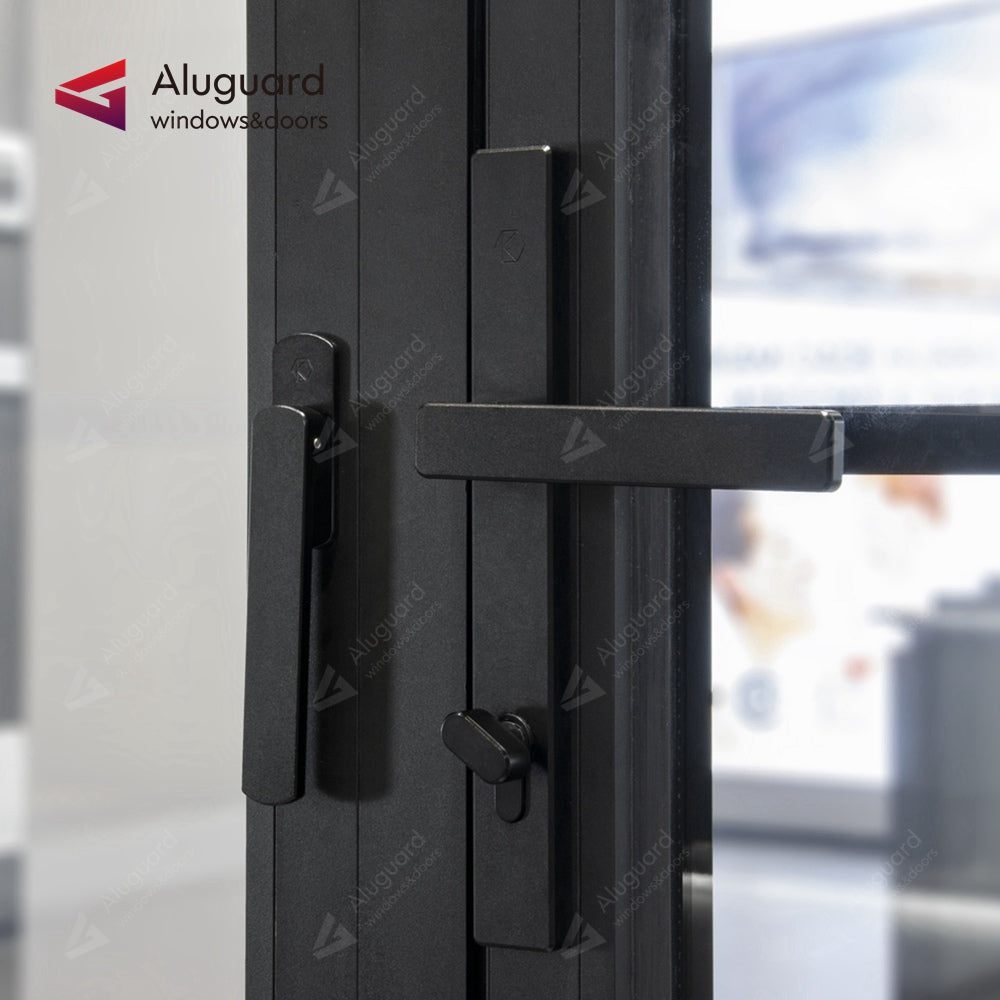

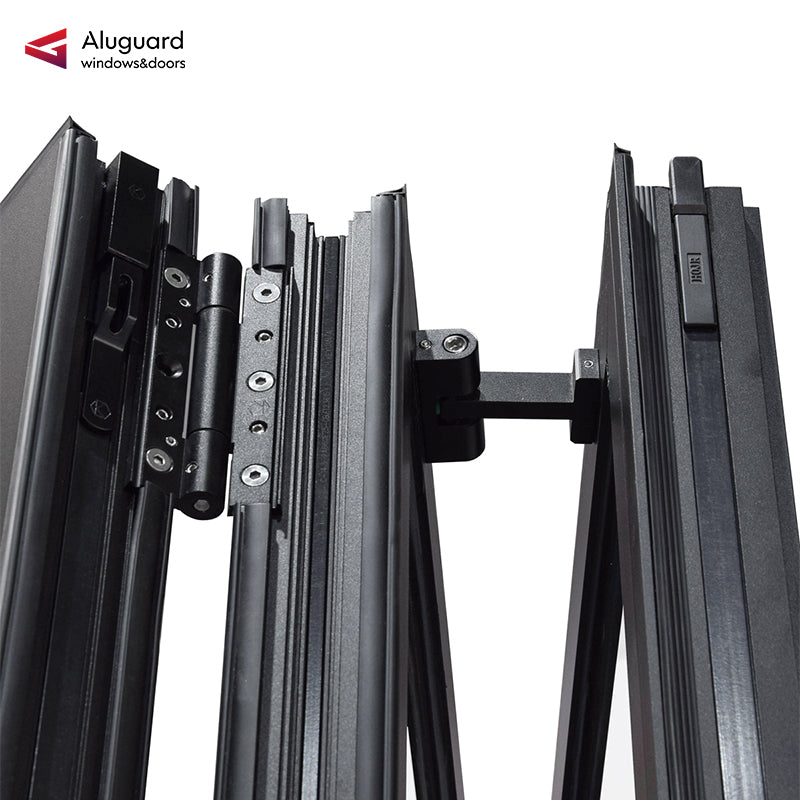

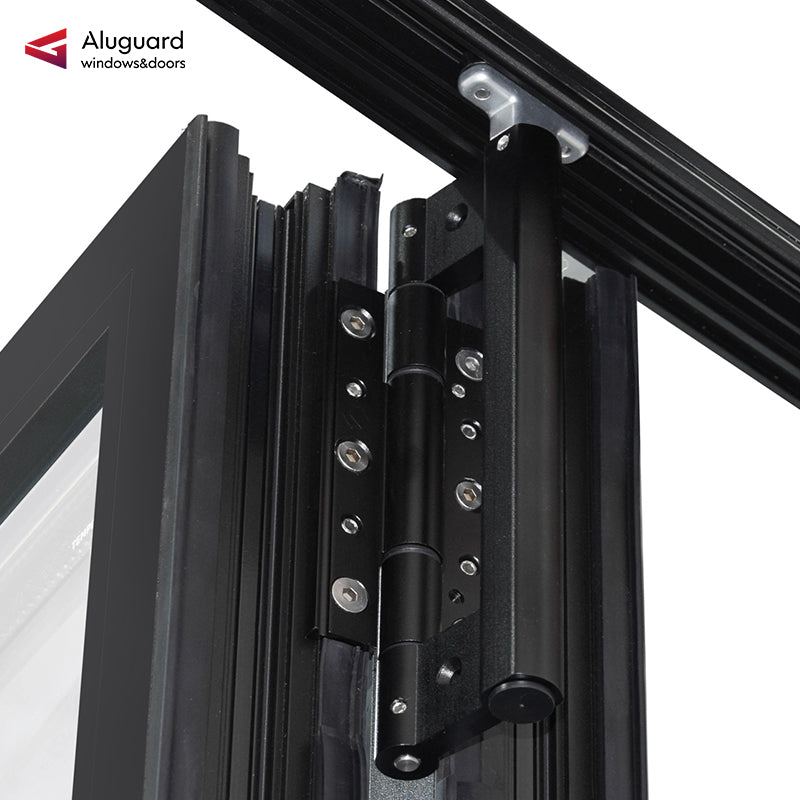

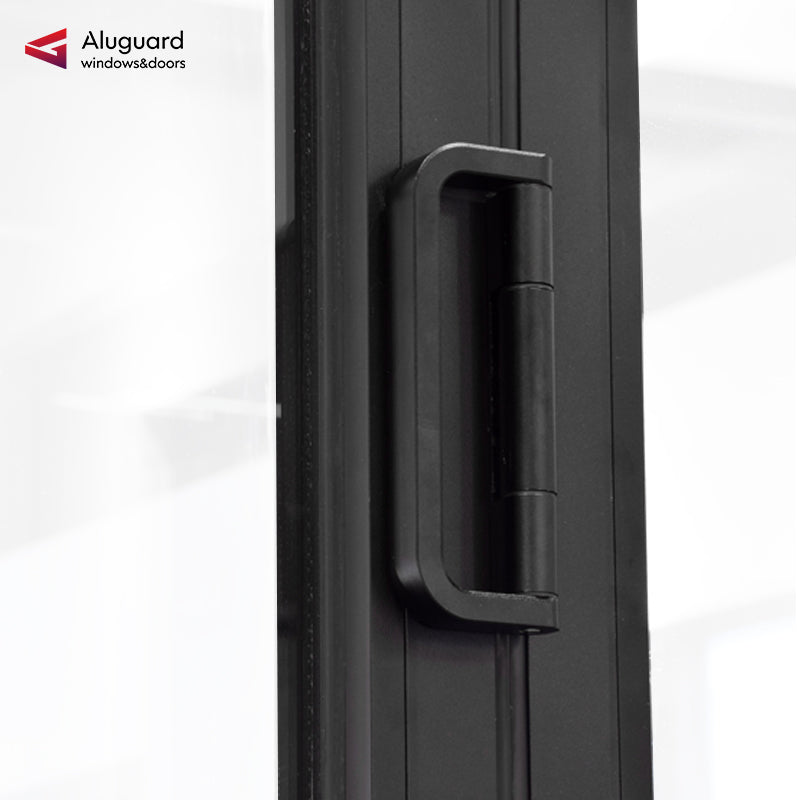

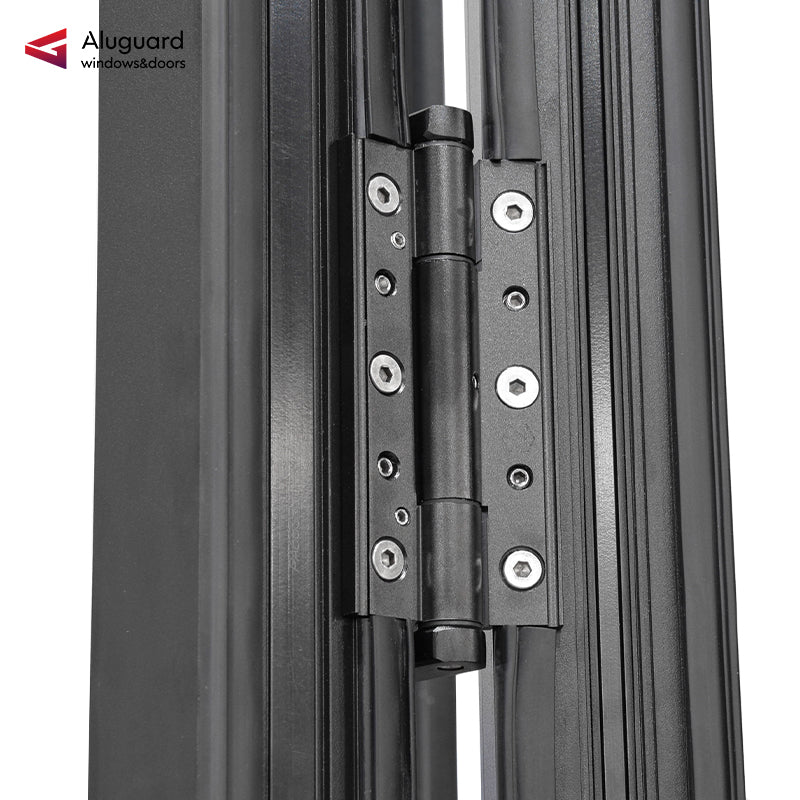

Hardware

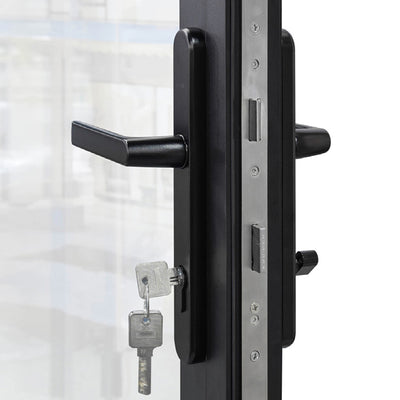

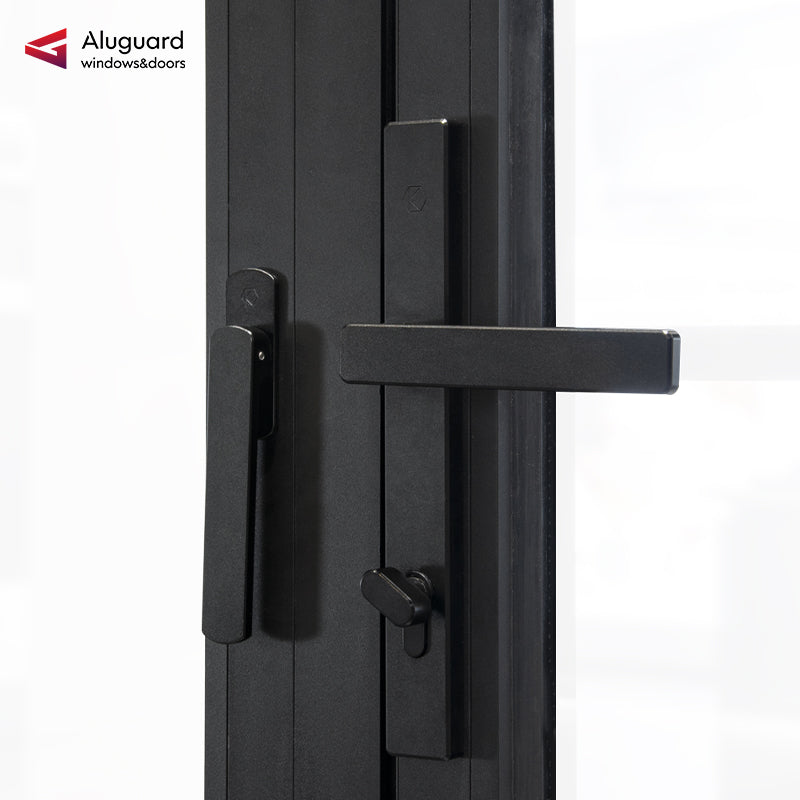

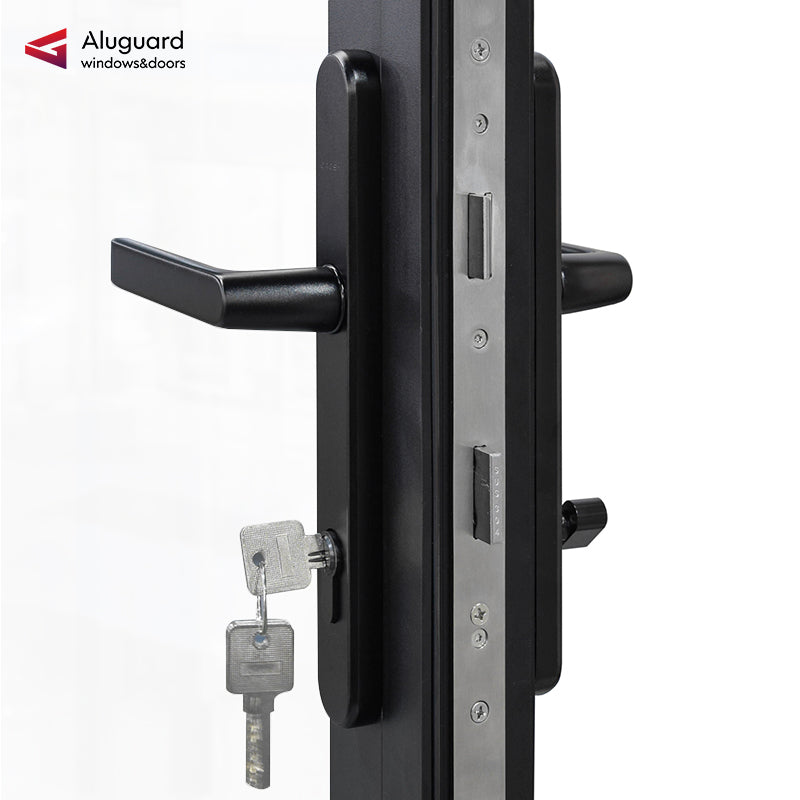

Three-point locking system
Multi-point locking design ensures a tighter seal and enhanced security. The reinforced locking system provides excellent stability, wind resistance, and long-lasting performance.
Colors
Standard Colors
A high-quality window deserves a dependable finish. Our low-maintenance, clad-wood products feature an extruded aluminum exterior finished in commercial-grade paint for superior resistance to fading and chalking. Our palette of 19 color options spans from muted, earthy tones to bold, rich colors and three pearlescent finishes. Custom color matching is also available to meet any design vision.
Matte Black
Matte Gray
Pure White
Matte Coffe
Champagne
Custom Colors
Any color. Any window or door. You name it. No matter what your inspiration for a custom window or door color, Marvin will match it. You get any color your heart desires, with your own personal custom color name and a 20-year warranty. See your Marvin dealer for details and ask about special pricing.
Glass
Laminate-glass
Low-E_Single_Coating
Tempered-Glass
Configuration
Any folding configuration can be achieved
We also offer other customizable configurations.
