Description

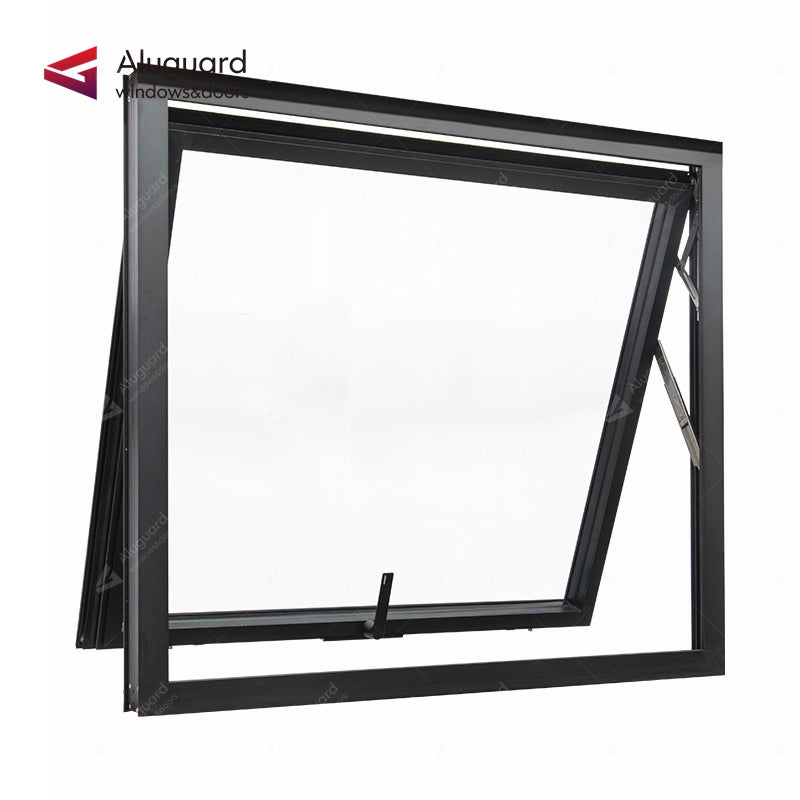

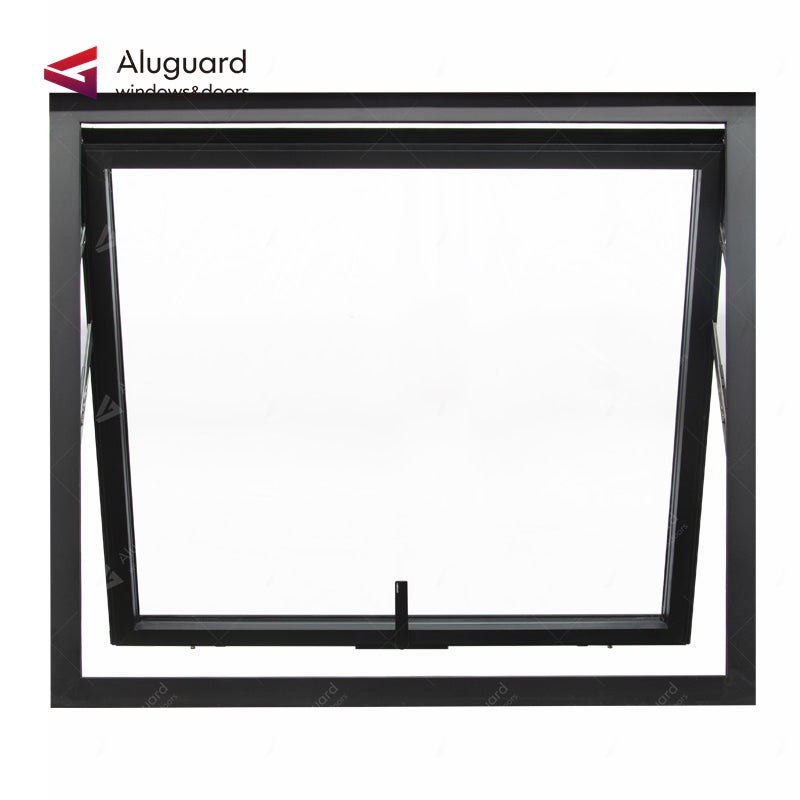

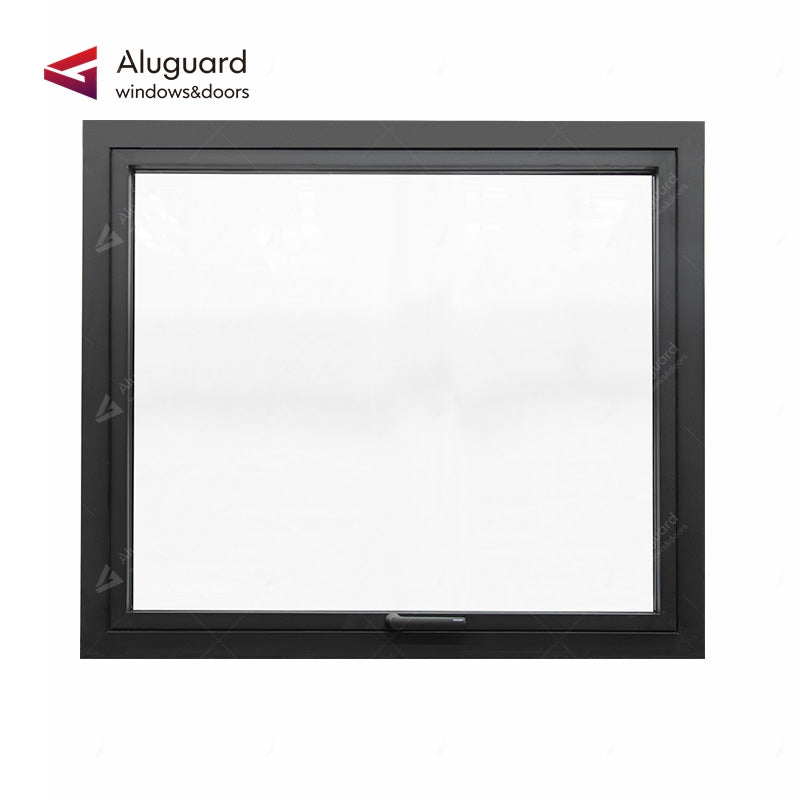

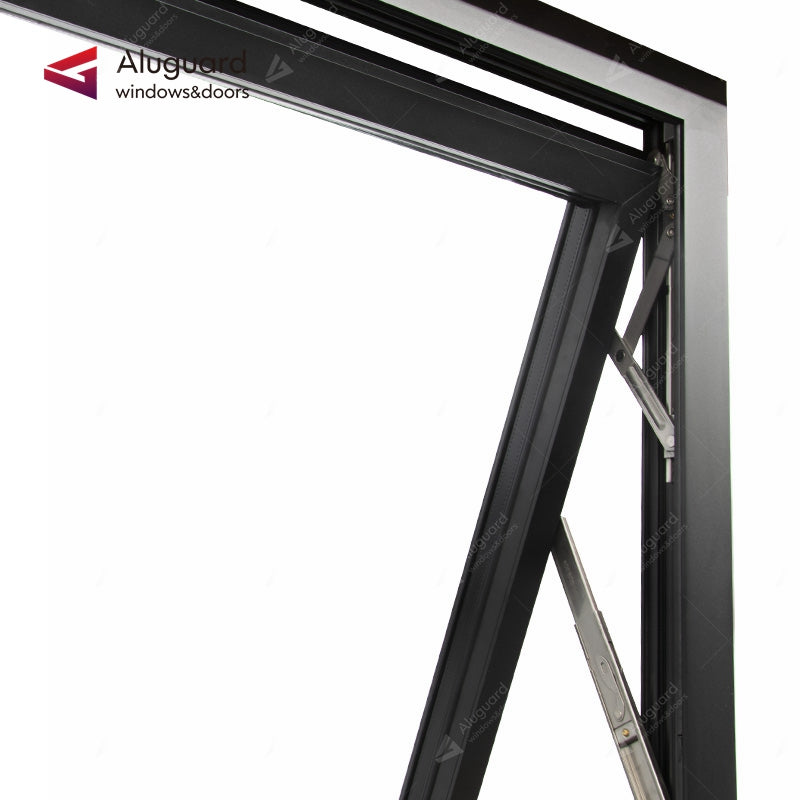

xMINIMALIST SERIES - SLIM FRAME OUTWARD OPENING ALUMINUM CASEMENT & AWNING WINDOW
● Minimalist design
These aluminum casement are made of glass and aluminum to complement your home's clean.The glass panel frame sightline is only 30mm.Allow more natural light in your living space.
● Large Size
The large full view glass panels beautifully fuse indoor and outdoor spaces, enhancing your home's glass expanses and patios – all while their rugged.
● Weather resistance
Powder coating aluminum construction makes them virtually maintenance-free.There are EPDM sealing strips between the gaps of the door, which has good air tightness and water tightness.
● Thermal Insulation

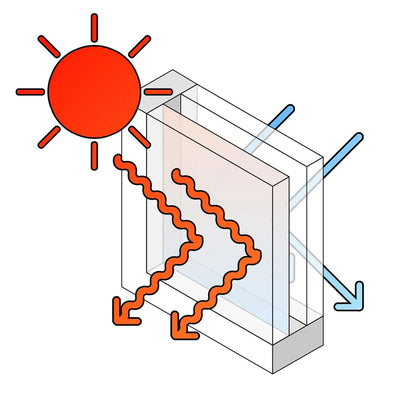

Available with Advanced Low-E insulating triple-pane glass with krypton or argon for increased energy efficiency.Thermal transmission coefficient:U≤0.246 BTU/h·ft2·℉
System Details
Performance
U-Factor
0.246
SHGC
0.23
Air Leakge
≤0.1
Water Tightenss
No Leakage @ 15 psf
Design Wind Load Resistance
60 psf
Overload Wind Load Resistance
90 psf
Specifications
Basic Frame Depth
90mm
Max Swing Panel Height
96"
Max Swing Panel Width
36“
Min Swing Panel Height
18"
Min Swing Panel Width
18"
Suggest Fixed Panel Area （Single ）
≤6 m²
Why You'll Love It
Opening Method
Multiple opening methods can be customizedto suit the requirements of any building surface.
LARGER SIZE
Operable single-sash window sashes can reachheights of up to eight feet.
DESIGN
The clean lines of the modern minimalist desigrmake the product look sleek and aesthetically pleasing.
SCREENS
Thanks to its multiple screen options vou canenjoy the breeze allyear round while keepinginsects out.
Design Options
Hardware

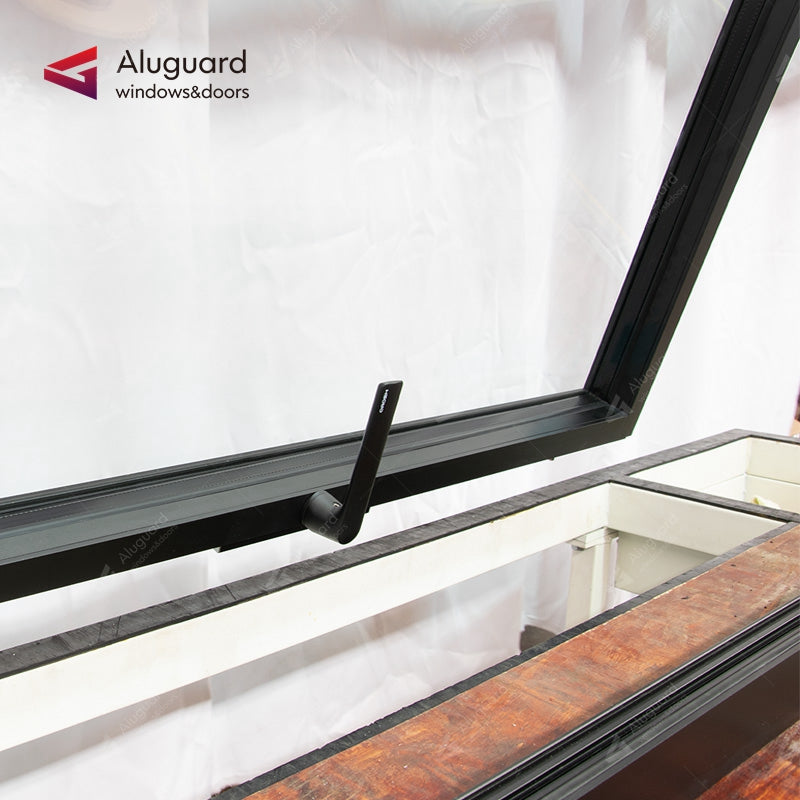

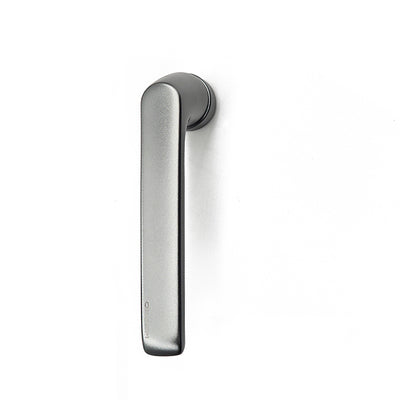

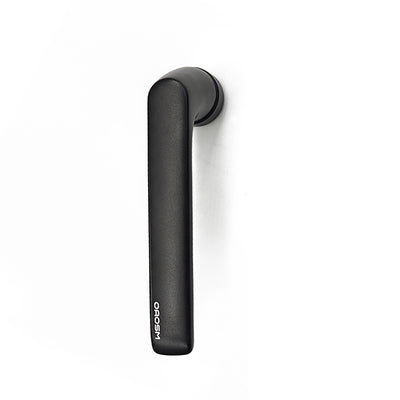

Handle
A high-quality window deserves a dependable finish. Our low-maintenance, clad-wood products feature an extruded aluminum exterior finished in commercial-grade paint for superior resistance to fading and chalking. Our palette of 19 color options spans from muted, earthy tones to bold, rich colors and three pearlescent finishes. Custom color matching is also available to meet any design vision.

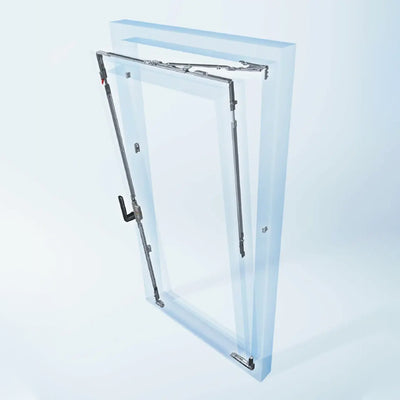

Titl-Turn System
Any color. Any window or door. You name it. No matter what your inspiration for a custom window or door color, Marvin will match it. You get any color your heart desires, with your own personal custom color name and a 20-year warranty. See your Marvin dealer for details and ask about special pricing.
Colors
Standard Colors
A high-quality window deserves a dependable finish. Our low-maintenance, clad-wood products feature an extruded aluminum exterior finished in commercial-grade paint for superior resistance to fading and chalking. Our palette of 19 color options spans from muted, earthy tones to bold, rich colors and three pearlescent finishes. Custom color matching is also available to meet any design vision.
Matte Black
Matte Gray
Pure White
Matte Coffe
Champagne
Custom Colors
Any color. Any window or door. You name it. No matter what your inspiration for a custom window or door color, Marvin will match it. You get any color your heart desires, with your own personal custom color name and a 20-year warranty. See your Marvin dealer for details and ask about special pricing.
Opening Method
Multiple opening methods can be customizedto suit the requirements of any building surface.

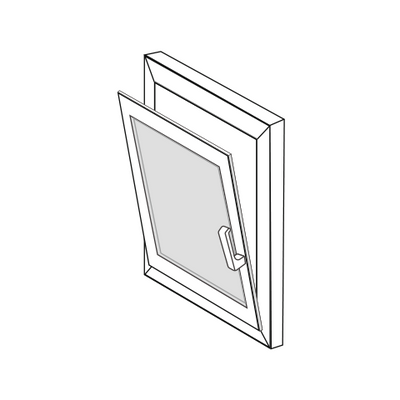

Tilt-Turn

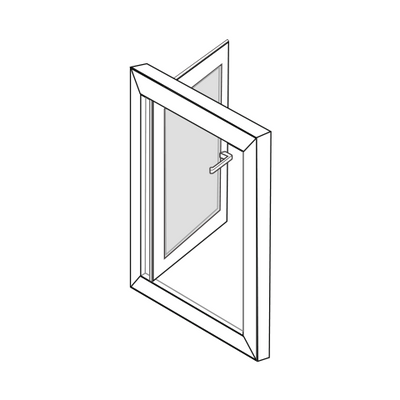

Outswing

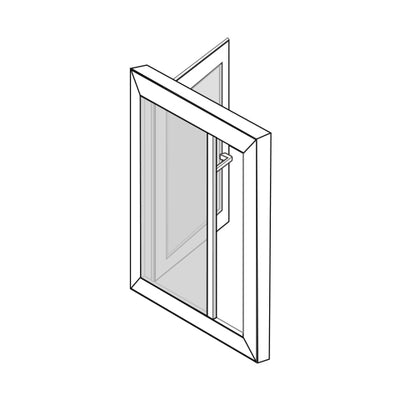

Outswing & Screen

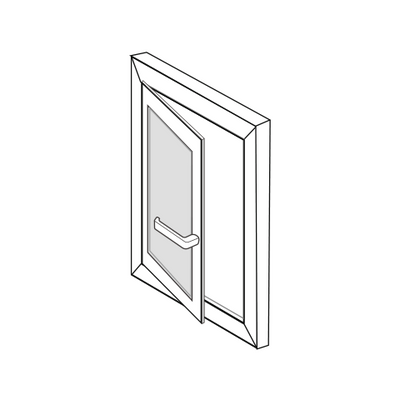

inswing
Glass

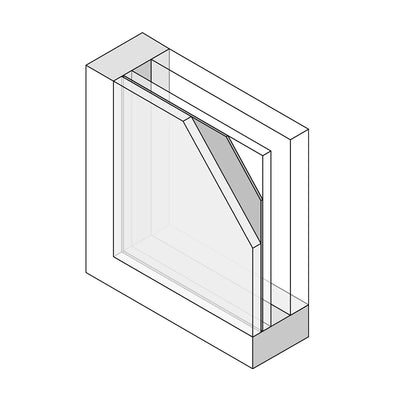

Triple-pane insulated glass
we fill every pane of glass with nitrogen to make it more heat-insulating and quieter.
Screen
